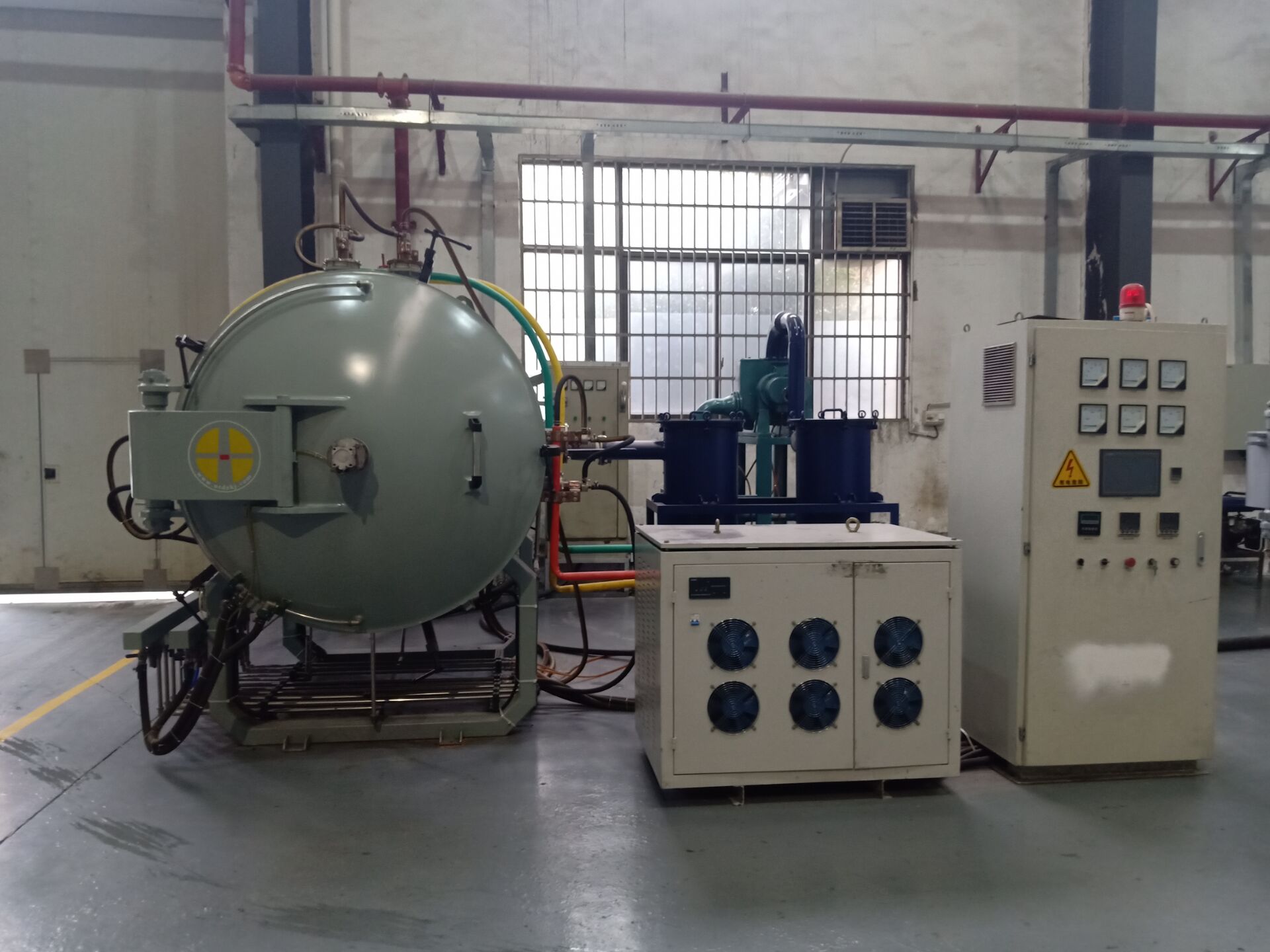

graphite resistance sintering furnace
1.application:
the equipment is batch type resistance furnace, mainly used in the heating treatment of pi film , radiation proof material, rare earth oxide, ceramic material, ceramic valve, carbide products, tungsten carbide, silicon carbide, powder metallurgy, gemstone, rhenium material, hss parts, polysilicon material, graphite and carbon material for the purpose of debinding, derubber, dewax, degrease, sintering and so on.
2.configuration:
380v±5%，50hz/60hz 3 phase 5 wire
one control cabinet to one furnace and optional for one to two type or one to four type.
the facility equipped of cooling tower or gas purifier for optional.
3.technology parameter:
|
model parameter |
lab usage |
production usage |
|||||
|
nti-dzl-54w |
nti-dzl-98w |
nti-dzl-243w |
nti-dzl-300w |
nti-dzl-400w |
nti-dzl-720w |
||
|
working size |
mm |
300×300×600 |
350x350x800 |
450×450×1200 |
500×500×1200 |
500×500×1600 |
600×600×2000 |
|
control process |
|
thyristor control |
|||||
|
heating type |
/ |
graphite resistance heating |
|||||
|
ht zone capacity |
l |
54 |
98 |
243 |
300 |
400 |
720 |
|
loading weight |
g |
ht zone capacity × density (g/cm³)×1000 remark：1l=1000cm³ |
|||||
|
ultimate vacuum |
pa |
20 |
|||||
|
if power |
kw |
100 |
200 |
210 |
240 |
270 |
378 |
|
heating zone |
zone |
1 |
3 |
3 |
3 |
3 |
3 |
|
max. working temperature |
℃ |
2300 |
2300 |
2300 |
2300 |
2300 |
2300 |
|
usual working temperature |
℃ |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
|
temperature unifomity |
℃ |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
|
working environment |
/ |
vacuum or argon atmosphere protection( micro positive pressure) |
|||||
you can customize it as per your real requirement.
